Golden validation

WinISD golden dataset and deviation browser

This public report tracks deterministic 00 Simulator fixtures against WinISD extraction artifacts. It is designed to show where the tools match, where they drift, and whether each release is moving the validation set in the right direction.

Fixture corpus

50 deterministic `.wpr` cases across sealed, vented, BP4, and BP6 alignments.

Comparison policy

9 graph metrics sampled at 18 shared frequencies with explicit tolerances.

Release signal

Machine-readable JSON and Markdown artifacts are committed for review and future CI.

Latest JSON report WinISD comparison page

Agreement with WinISD

6,358 gating points · 50 cases

93%within tolerance

Excellent4857

Pass1054

Watch277

Fail170

Accuracy by metric

worst first · click to inspect

Case

12.5

31.5

100

125

160

200

250

315

400

500

Sealed small wideband

Fail

Baseline sealed-box response with a small full-range driver and no filters.

WPR

Driver

Tang Band W5-1138SM

Enclosure

sealed

Input

10 W · 1 drivers

Simulator summary

F3 71.3 Hz

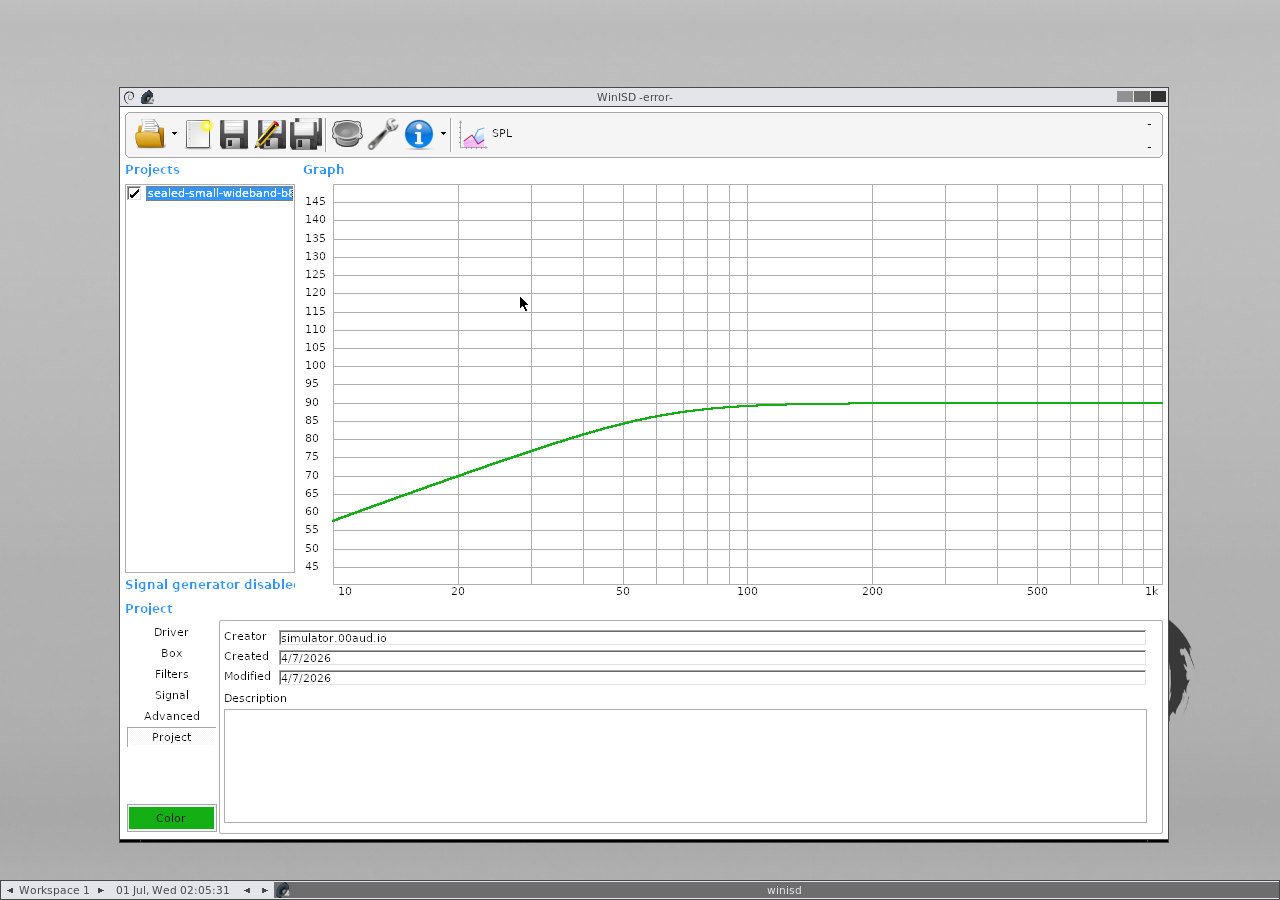

WinISD Sound pressure level graph for Sealed small wideband — WinISD — Sound pressure level

00 Simulator — Sound pressure level

00 SimulatorWinISD sampled

Frequency	00 Simulator	WinISD	Delta	Pass / warn ≤	Grade
10 Hz	57.6187 dB	57.6 dB	0.0187 dB	3 / 6 dB	Excellent
12.5 Hz	61.6359 dB	61.617 dB	0.0189 dB	3 / 6 dB	Excellent
16 Hz	66.018 dB	65.948 dB	0.07 dB	3 / 6 dB	Excellent
20 Hz	69.9339 dB	69.828 dB	0.1059 dB	3 / 6 dB	Excellent
25 Hz	73.8038 dB	73.707 dB	0.0968 dB	3 / 6 dB	Excellent
31.5 Hz	77.7354 dB	77.51 dB	0.2254 dB	3 / 6 dB	Excellent
40 Hz	81.6339 dB	81.25 dB	0.3839 dB	3 / 6 dB	Excellent
50 Hz	84.9601 dB	84.275 dB	0.6851 dB	3 / 6 dB	Excellent
63 Hz	87.8158 dB	86.612 dB	1.2038 dB	3 / 6 dB	Pass
80 Hz	89.8761 dB	88.262 dB	1.6141 dB	3 / 6 dB	Pass
100 Hz	90.9864 dB	89.088 dB	1.8984 dB	3 / 6 dB	Pass
125 Hz	91.5451 dB	89.638 dB	1.9071 dB	3 / 6 dB	Pass
160 Hz	91.8183 dB	89.638 dB	2.1803 dB	3 / 6 dB	Pass
200 Hz	91.9215 dB	89.912 dB	2.0095 dB	3 / 6 dB	Pass
250 Hz	91.9666 dB	89.912 dB	2.0546 dB	3 / 6 dB	Pass
315 Hz	91.9869 dB	89.912 dB	2.0749 dB	3 / 6 dB	Pass
400 Hz	91.9961 dB	89.912 dB	2.0841 dB	3 / 6 dB	Pass
500 Hz	91.9999 dB	89.912 dB	2.0879 dB	3 / 6 dB	Pass

Breakdown

bandpass-4

11 cases

92%28 fail

bandpass-6

11 cases

89%61 fail

sealed

12 cases

97%13 fail

vented

16 cases

93%68 fail

Bars show excellent / pass / watch / fail across gating metrics (phase excluded).

Report notes & provenance

Fixture inputs and comparison policy are owned by 00 Simulator.
WinISD extraction output is treated as an external artifact owned by winisd-mcp.
Comparison points are graded excellent / pass / warn / fail per metric; excellent and pass both count as passing.
Residual failure clusters are diagnostic triage evidence only; they do not accept waivers or change tolerances.
For multi-driver fixtures, WinISD amplifier impedance is normalized from its per-driver trace to the Simulator's all-parallel system load: Rg + (Zwinisd - Rg) / driverCount. Single-driver and non-impedance references are unchanged.
Transfer phase reports far-field pressure phase (the +90° monopole radiation lead is applied at the source, consistent with SPL magnitude), matching WinISD. Transfer phase and its group-delay derivative are graded only in-band — within 15 dB of the SPL peak — because out-of-band phase is pure wrap noise; out-of-band points are shown but marked not-applicable.

Manifest 036749452ed9 · simulator 1.4.0 · WinISD schema winisd-eval/normalized-v1
